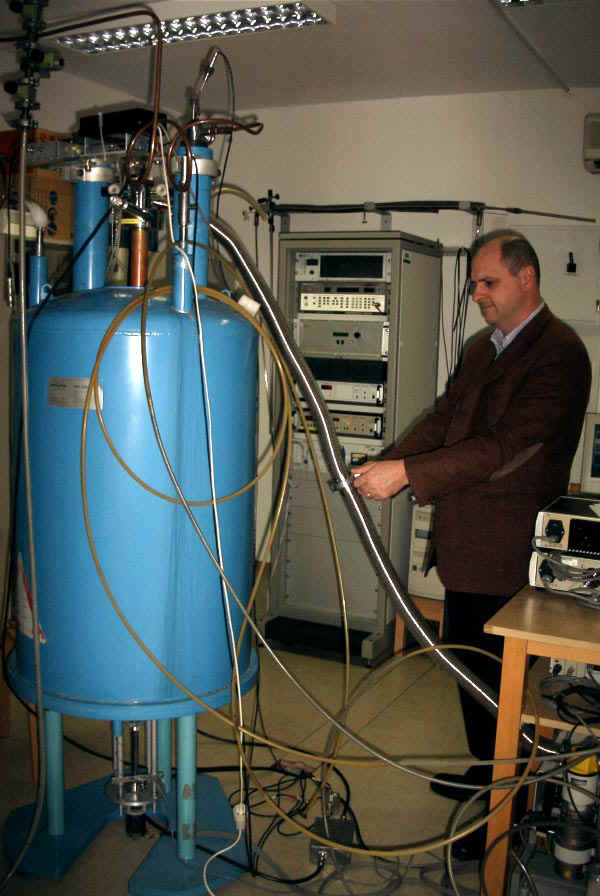

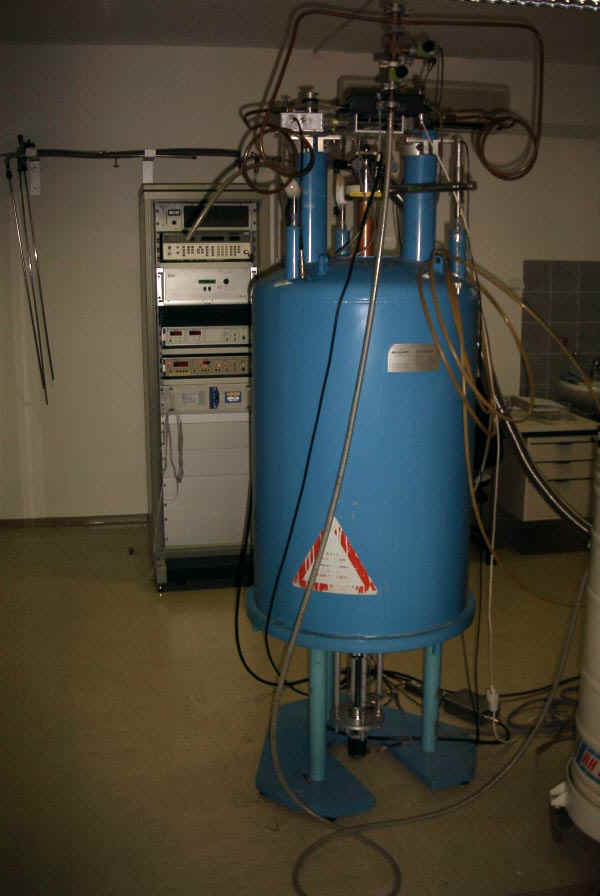

NMR frequency-sweep spectrometer 6.3 T
|
|

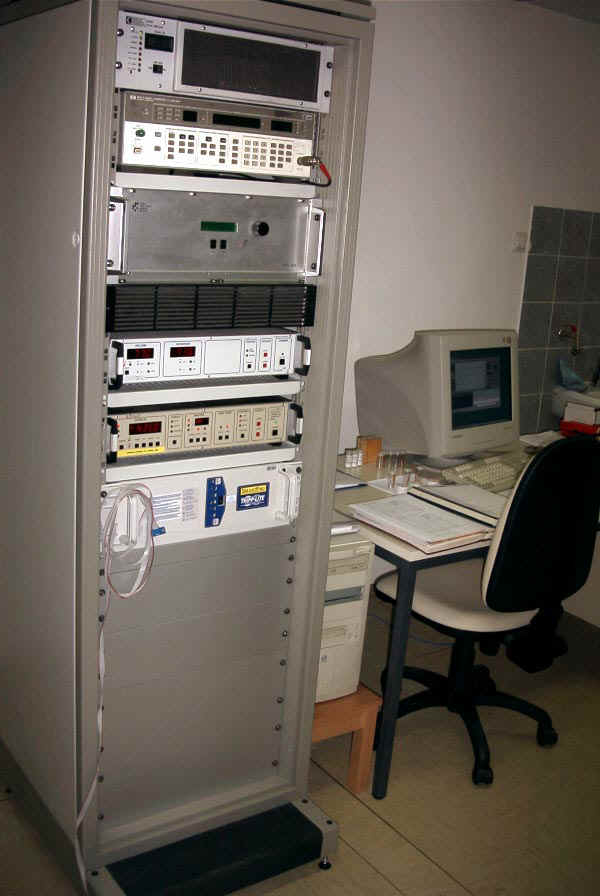

NMR frequency-sweep spectrometer in a magnetic field 6.3 T. All spectrometer components are broad-banded except the probe head, which is automatically tuned via a stepper motor system. This spectrometer is dedicated to NMR spectroscopy of very broad absorption lines up to 12 MHz (suitable for NMR of quasicrystals, metallic glasses, nanomagnets, disordered solids, etc...). |
|
|
|
|
|
|
|
|
|

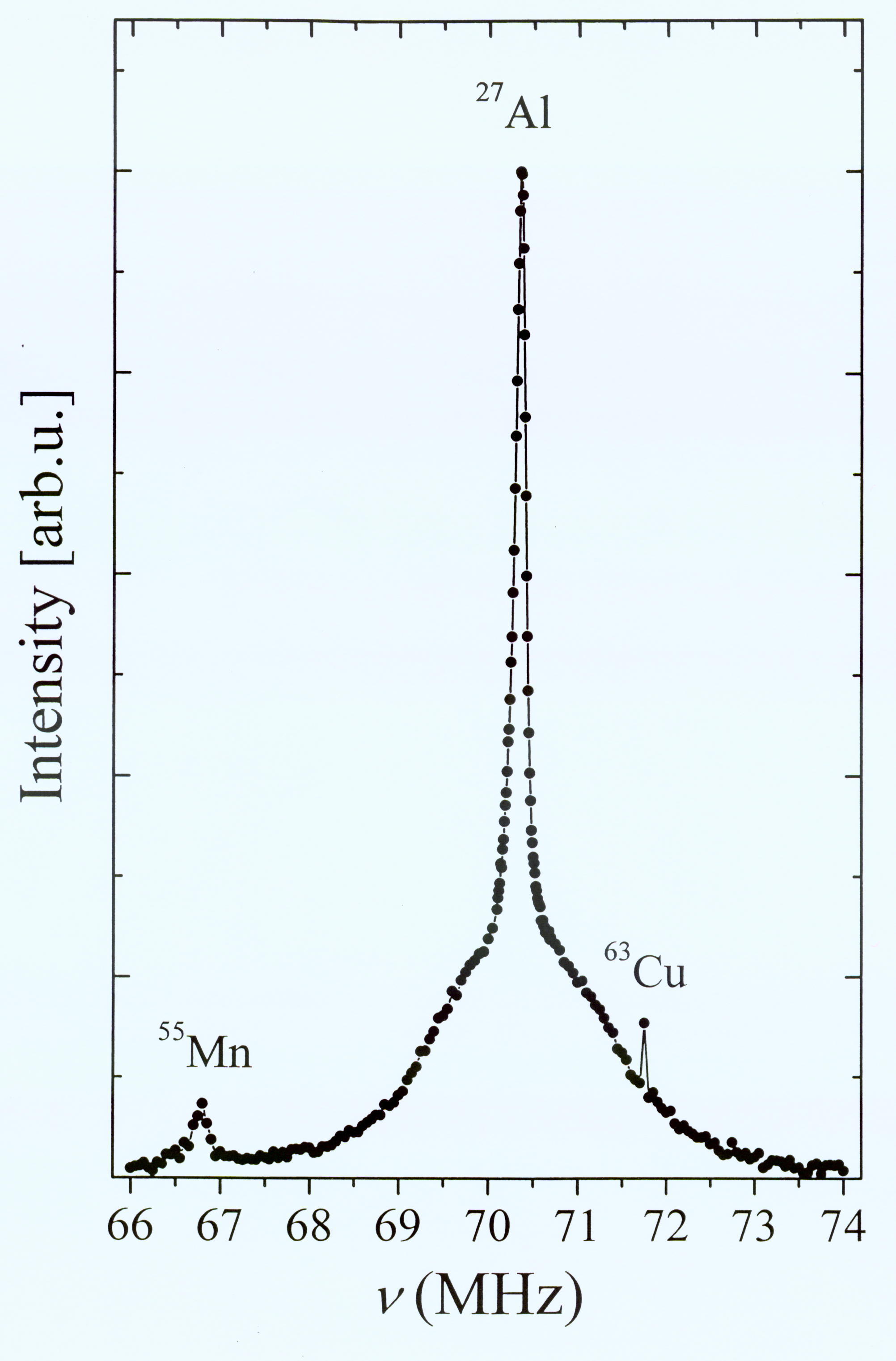

27Al frequency-swept NMR spectrum of icosahedral AlPdMn flux-grown single-grain quasicrystal (63Cu resonance originates from the probe head coil)
|
|
|
|

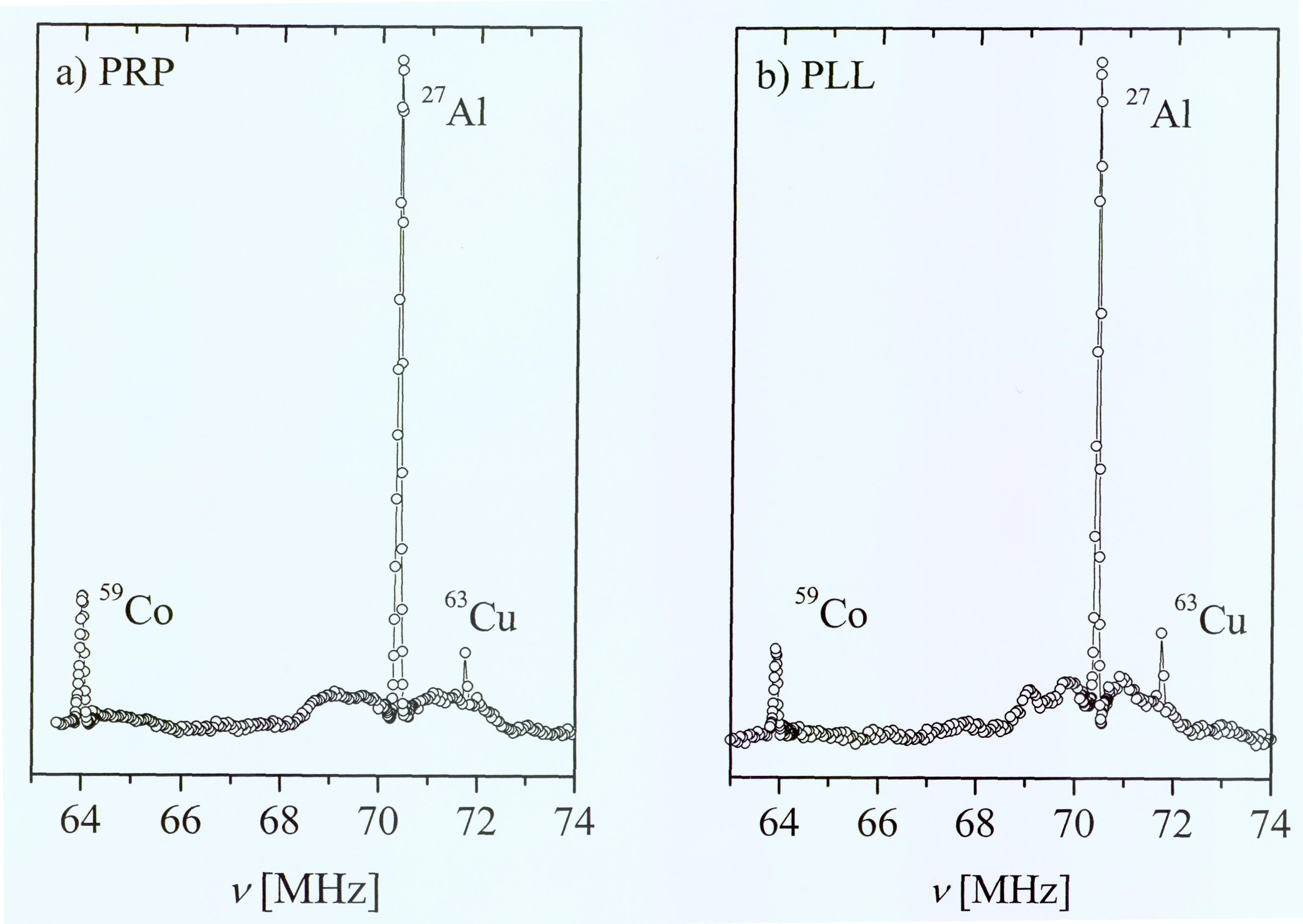

27Al/59Co NMR spectrum of decagonal AlNiCo quasicrystal (single grain) a) 10-axis perpendicular to magnetic field b) 10-axis parallel to magnetic field
|
|
|
|
|
